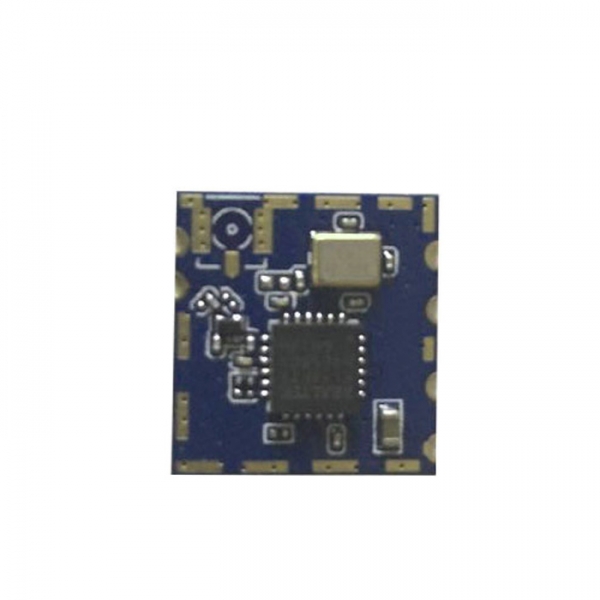

Product introduction
The RTL8188FTV is a high-performance wireless module that complies with the IEEE 802.11N standard and is backward compatible with the IEEE 802.11B/G standard, supports the IEEE 802.11i security protocol, and the IEEE 802.11e standard service quality. Its extremely high compatibility enables Quick and convenient communication with wireless devices, supporting the latest 64/128-bit WEP data encryption, support for WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism, high wireless transmission rate of 150M, 10 times that of ordinary 11B products.
Application area
Tablets, laptops, readers, etc.
Network cameras, set-top boxes, etc.
Consumer electronics or smart appliances (TVs, DVD players, Blu-ray players, etc.)
The main features
Meet 802.11n standards, up to 150Mbps wireless transmission rate;
Highly integrated single
| |

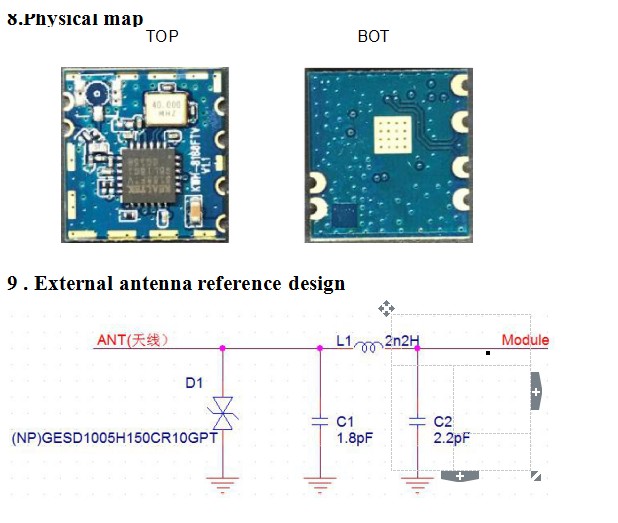

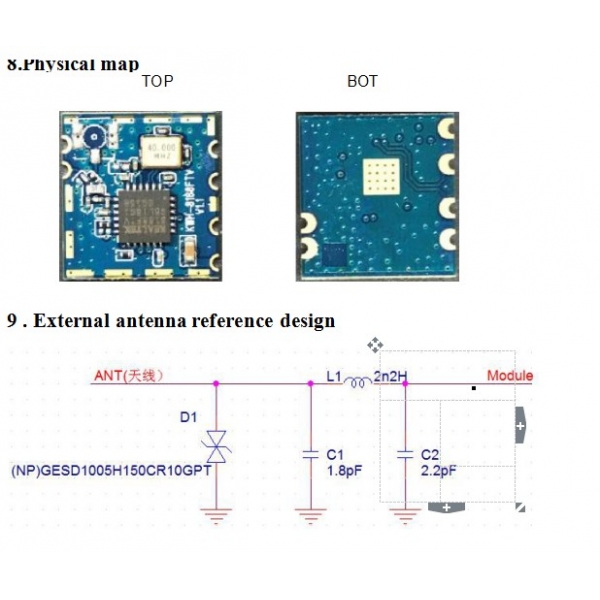

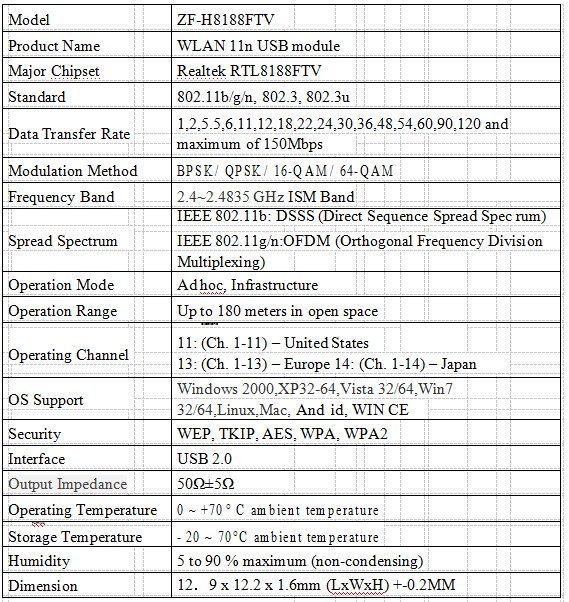

Model |
|
|
ZF-H8188FTV |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
Product Name |
|
|
WLAN 11n USB module |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
Major Chipset |
|
|
Realtek RTL8188FTV |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
Standard |
|
|
802.11b/g/n, 802.3, 802.3u |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
Data Transfer Rate |
|
|
1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120 and |
| |
|
|
|
maximum of 150Mbps |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
Modulation Method |
BPSK/ QPSK/ 16-QAM/ 64-QAM |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
Frequency Band |
|
|
2.4~2.4835 GHz ISM Band |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
IEEE 802.11b: DSSS (Direct Sequence Spread Spec rum) |
| |
Spread Spectrum |
|
|
|
|
|
|
|
|
|
|
|
. |
| |
|
|
|
IEEE 802.11g/n:OFDM (Orthogonal Frequency Division |
| |
|
|
|
|
|
Multiplexing) |
|
|
|
|
|
|
|
|
| |
Operation Mode |
|
|
Ad hoc, Infrastructure |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
Operation Range |
|
|
Up to 180 meters in open space |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
Electronic |
|
| |
Operating Channel |
|
|
11: (Ch. 1-11) – United States |
|
|
| |
|
|
|
13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan |
| |
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| |
OS Support |
|
|
Windows 2000,XP32-64,Vista 32/64,Win7 |
| |
|
|
|
32/64,Linux,Mac, And id, WIN CE |
|
| |
|
|
|
|
|
|
|
| |
Security |
|
|
WEP, TKIP, AES, WPA, WPA2 |
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
Interface |
|
|
USB 2.0 |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
Output Impedance |
|
|
50Ω±5Ω |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
| |
Operating Temperature |
0 ~ +70° C ambient temperature |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
Formike |
- 20 ~ 70°C ambient temperature |
|
|
|
|
| |
Storage Temperature |
|
|
|
|
|
| |
Humidity |
|
|
5 to 90 % maximum (non-condensing) |
|
| |
|
|
|
|
|
|
|
|
|
|
| |

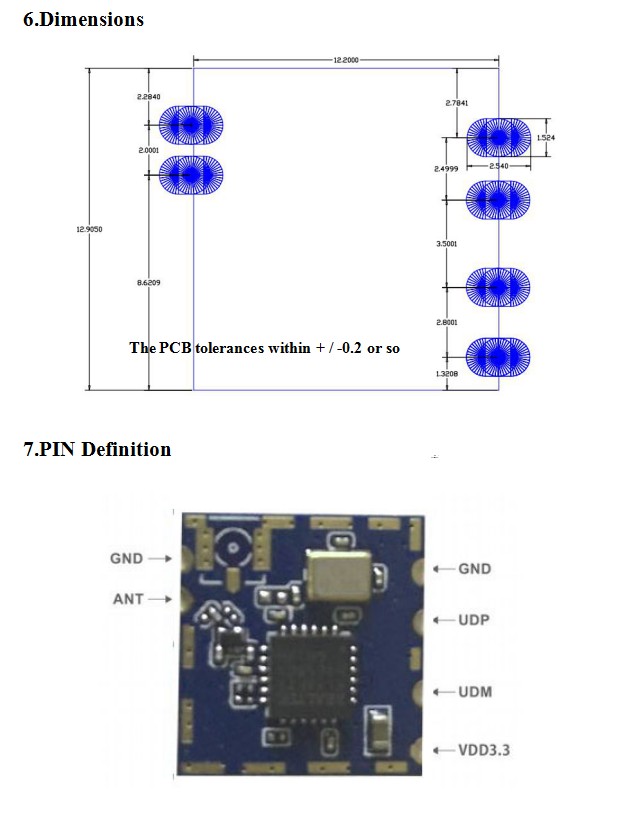

Dimension |
|
|
12．9 x 12.2 x 1.6mm (LxWxH) +-0.2MM |
