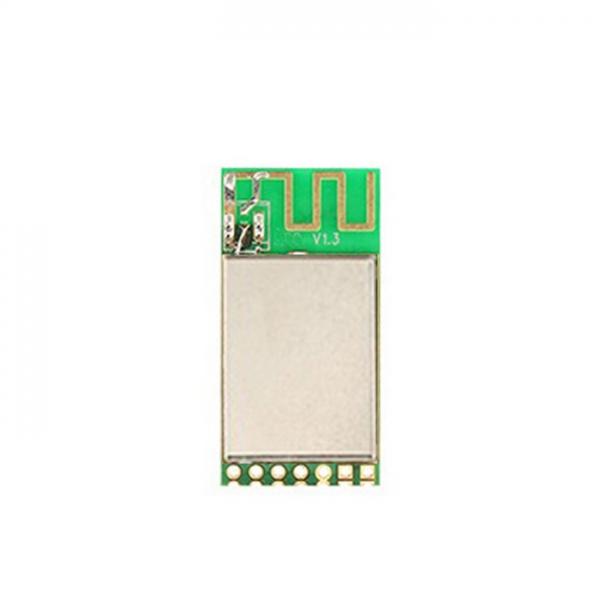

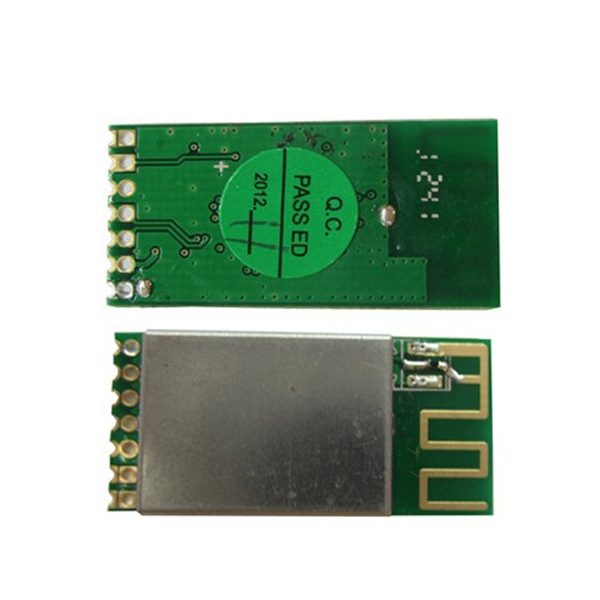

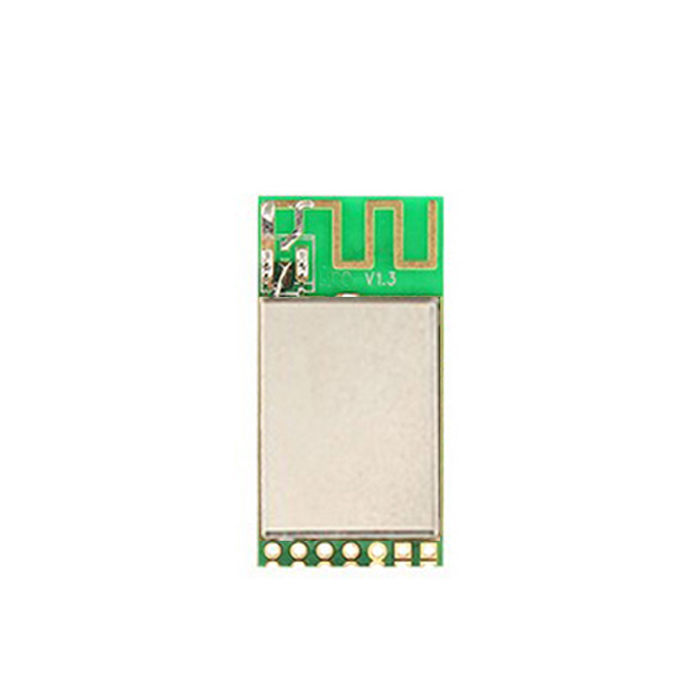

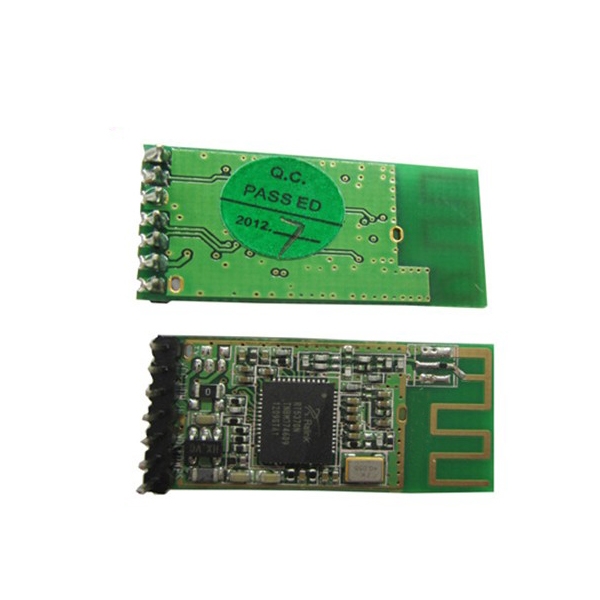

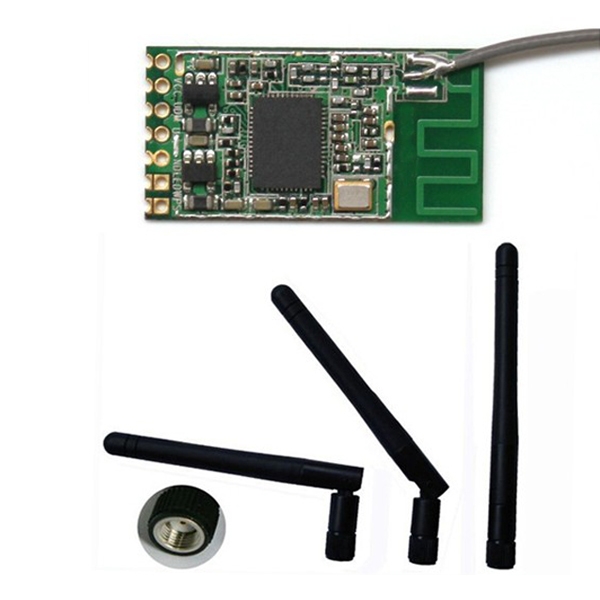

RT5370模块/usb无线模块/5V供电/wifi模块

RT5370模块,wifi模块适合于:台式电脑、上网本、MID(平板电脑)、机顶盒[1]、监控摄像头、网络收音机、数码相框、健身器材、医疗器械、灯光控制、门锁控制、物流网监控设备,等等需要采用无线传送数据的各种运用。
为保障合作伙伴的长期利益,我们在追求产品的品质基础上用心控制成本。产品尽量采用日本春田电子料,不论对国内还是对国外,所有的产品全部采用环保工艺生产,每一个产品都要经过多道环节的耗时约5分钟严格测试。

    Features:
    802.11b:1,2,5.5,11Mbps;802.11g:6,9,12,18,24,36,48,54Mbps.

    802.11n:(20MHz)MCSO-7,Support up to 72Mbps;(40MHz)MCSO-7,Support up to 150Mbps.
    OFDM,Peak rate 150Mbps,Peak throughput 90Mbps。
    Security support for 64/128 WEP,WPA,WPA2,TKIP,AES.
    Operates in 2.4GHz frequency bands,Power Management.

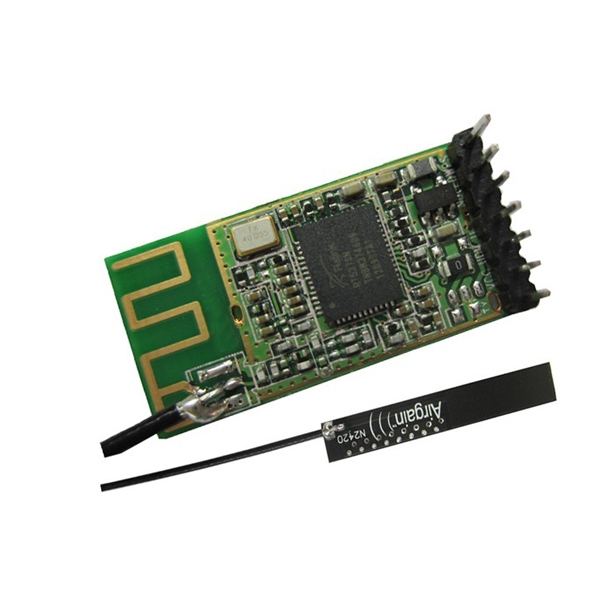

    Antenna configuration:Built-in On Board

    2.1 Typical Specification Overview
    Standards IEEE802.11b/g&802.11n(1T1R mode)
    Operation Frequency 2.412GHz~2.462GHz
    Protocols 802 .11b:CCK,QPSK,BPSK,802.11g/n:OFDM
    Antenna Built-in On Board
    Security WPA/WPA2,64/128/152-bit VEP,VPS
    Transmit Output 11b:19±1.0Bm @11Mbps ;11g:16±1.0Bm @54Mbps;
    Power (Typical) 802.11n:(HT20),16+/-1dBm;11n:(HT40),-62dBm@MSC7
    Receive Sensitivity 11b:-84dBm @ 11Mbps(Typical);11g:-68dBm @ 54Mbps
    (Typical) 802.11n:(HT20),-66dBm @ MSC7,(HT40),-62dBm@MSC7
    Operating Voltage 3.3VDV±5%
    Operating current <270mA at 3.3V DC input
    Bus Interface USB 2.0/USB1.1
    USB Interface 6-pin,2.0mm pitch male jumper,or 1.0mm pitch connector
    Antenna Impedance 50ohm
