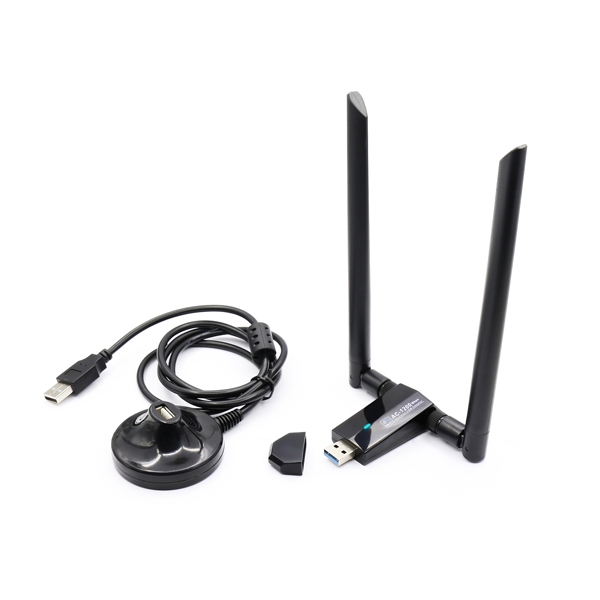

RTL8812AU/BU WIRELESS ADAPTER USB3.0 HIGH SPEED WIFI DONGLE

ZF-H8812AU is a dongle that uses the latest 11AC dual-band wireless WIFI standard technology. WIFI can search the network signals of 2.4G and 5G bands at the same time, and use 5GHz channel to transmit data with low interference and excellent performance. In response to the surge in network data, the new generation of 802.11AC wireless transmission technology has greatly increased the transmission rate of 5GHz by nearly 3 times compared with the existing 11n technology. The maximum transmission rate of WIFI is 2.4G/300Mbps and 5G/867Mbps; Wirelessly, enjoy the high-speed Internet surfing like wired network. Whether it is Online Game or high-definition video and audio, the data transmission quality is more perfect. Therefore, it is the best choice to activate the 5GHz band speed surfing. At the same time, it also supports the analog AP hotspot function.
The wireless adapter is also integrated with the wireless configuration program. It is easy to install and use. It can quickly and easily set up the wireless client and support the Soft AP function, so that you can quickly set up the wireless LAN. In terms of wireless security, it supports WPA/WPA2/WEP/802.1X/WMM encryption, allowing you to quickly implement wireless encryption and secure wireless networks.
    Features:
    Ultra-fast 1200 (867+300)Mbps wireless speed with 802.11ac
    Dual Band connections for lag-free HD video streaming and gaming
    SuperSpeed USB 3.0 port—Up to 10x faster than USB 2.0
    Easy wireless security encryption at a push of the WPS button

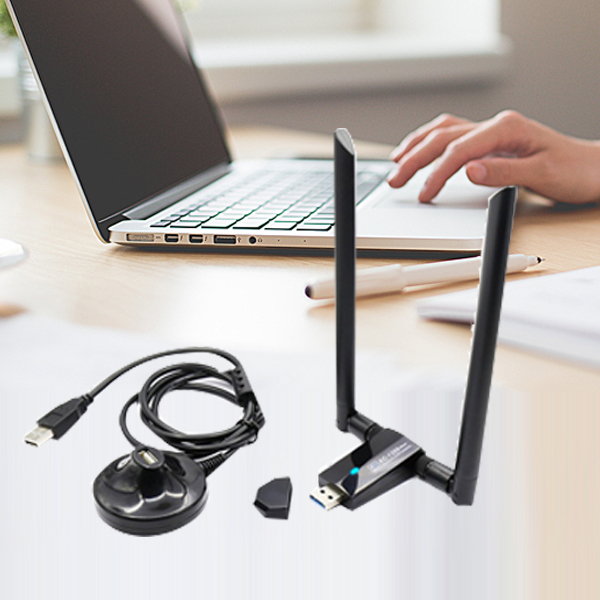

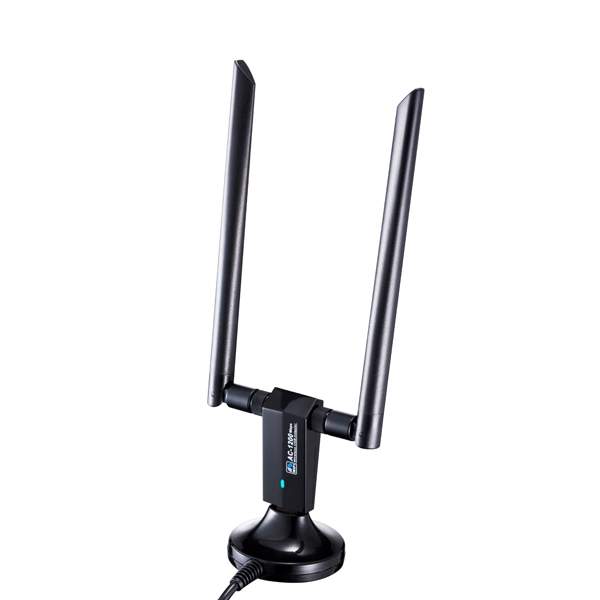

    Equipped with a USB docking for flexible deployment

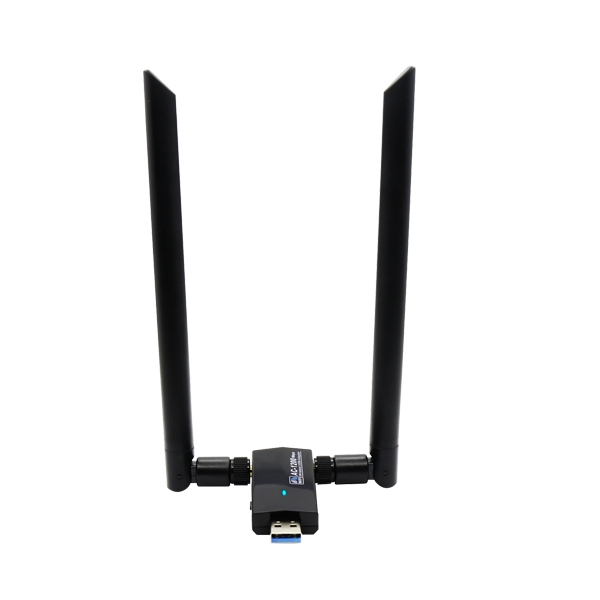

    With dual external 5dBi antennas, wifi signal is enhanced

    Specifications:

    Wireless Standards

    IEEE 802.11ac/a/n/g/b

    Interface

    High speed USB3.0 interface

    Data Rate

    802.11ac: up to 867Mbps
    802.11n: up to 300Mbps
    802.11g: 54/48/36/24/18/12/9/6Mbps auto fallback
    802.11b: 11/5.5/2/1Mbps auto fallback

    RF Frequency

    2.4-2.4835GHz; 5.150-5.825GHz

    Radio Channel

    1 ~ 14channels

    Antenna Type

    2 x External 5dBi Antennas

    RF Output Power

    2.4G: 17dbm±2dbm; 5G: 14dbm±2dbm

    Modulation

    802.11ac: MU-MIMO
    802.11a: 5G OFDM
    802.11n: MIMO-OFDM/CCK/DSSS
    802.11g: CCK/DSSS/OFDM
    802.11b: CCK/DSSS

    Data Security

    64/128-bit WEP Encryption, WPA, WPS

    LED Indicator

    Link/Active

    Operating System

    Windows XP/Vista/7/8/8.1/10, Linux, Mac

    OperatingTemperature

    0℃to 50℃, 20% ~ 85%RH

    Storage Temperature

    -10℃to 65℃, 10% ~ 90%RH
